Map Widget

The map widget displays a map (or any other kind of image or video) onto which you can place clickable icons and labels.

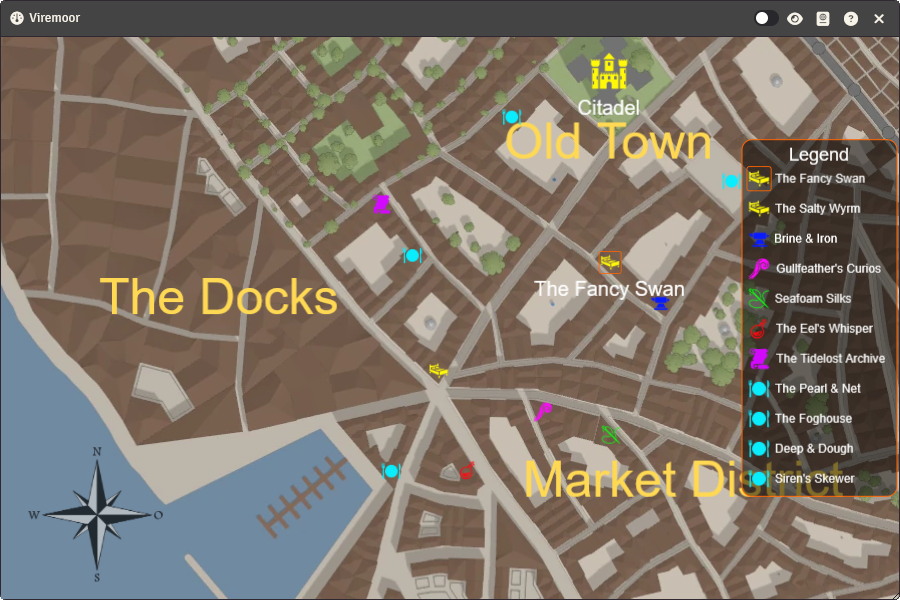

Take, for example, the map shown on the right. The image used here was just the map, all the icons/images and text were added as part of the map widget.

Depending on how the widget is configured, you can:

• Pan around (drag & hold the left mouse button)
• Zoom in/out (mousewheel)
• Hover over icons to display their label
• Hover over icons to display text or a page from an article
• Click an icon to open an article

Editing the Map Widget

You can make changes to the widget when you've opened the widget in stand-alone mode, you can make edits by changing to Edit Mode by pressing the slider at the top-right of the window, which will open the configuration sidebar.

The configuration sidebar has 3 tabs:

• Basics: Basic widget configuration, such as the image source, widget name and view position
• Items: Configuring map items
• Legend: Configuring the map legend

Control Buttons

When in edit mode, control buttons appear in the top-left of the widget:

• : Select All mode (currently the only mode)
• : Delete all selected items

Basics

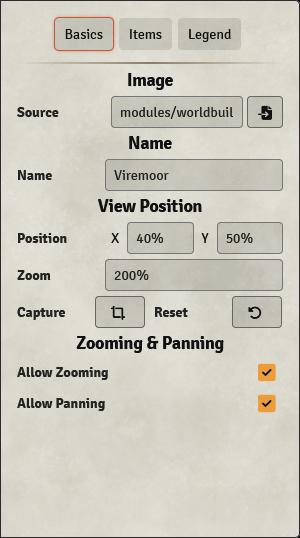

In the basics tab you can do some basic configuration of the widget:

• Basics: Basic widget configuration, such as the widget name and dimensions
• Background: Widget background configuration, such as background image
• View Position: Widget view position
• Default Item Config: Configuring how items look by default

Basics

Option	Description
Name	Sets the name of the widget.
Dimensions	Dimensions of the widget (in pixels). Will default to the dimensions of the background image.

Background

Option	Description
Color	Sets the background color of the widget. This will only be visible if no background image has been configured, or if the widget dimensions are larger than the image.
Image	The image (or video) to use as the background. Either copy the path to the image into the textbox or press the button to open the image browser.
Image Position	Sets the position of the image, allowing the image to be shifted in the X or Y direction.
Image Scale	Sets the scale of the image relative to the widget dimensions: 1 means the image will be scaled to fit the widget. 0.5 means the image will be half the size of the widget.
Video	Sets the playback properties if a video is set as the background image: -Play: Autoplay the video. -Mute: Mute the video.
Opacity	Sets the opacity of the background (color and image).

View Position

Option	Description
Position	Sets the view of the map when the widget/article is opened. Can be given in pixels (by entering a number), or as a percentage of the map's width or height: X: 0% means the left edge of the map is displayed in the center. X: 50% means the center of the map is displayed in the center. X: 100% means the right edge of the map is displayed in the center.
Zoom	Sets how much the map should be zoomed in when the widget/article is opened. Can be given as a scaling factor by entering a number: Zoom: 1 means 1 pixel of the map corresponds with 1 pixel on your screen. Zoom: 2 means 1 pixel on the map corresponds with 2 pizels on your screen, so it's zoomed in twice. Or can be set the zoom as a percentage of the map's width: Zoom: 100% means that the map is zoomed so the width is equal to the widget's width. Zoom: 200% means that the map is zoomed so the width is equal to 200% of the widget's width.
Capture	Capture the current view.
Reset	Reset the current view to the configured view position.
Allow Zooming	Allow the map to be zoomed in or out.
Allow Panning	Allow the map to be panned.

Default Item Config

The Default Item Config section sets the default config for the map items. Item options that this can apply to can be identified with a icon, where a star outline () indicates that the default config is used, while a filled star () indicates that the selected item's config is used.

For example, if Icon Size is set to 50 in the Default Item Config, all items with a icon next to the Icon Size setting will have an icon size of 50. If you change the size of a selected item to 40, the star icon will become filled (), and that item's icon will now be of size 40. If you now change Icon Size in the Default Item Config to 100, the icons of all other items will be of size 100, while the selected item's icon will remain 40.

You can toggle between using the default or the item's config by clicking the star icon.

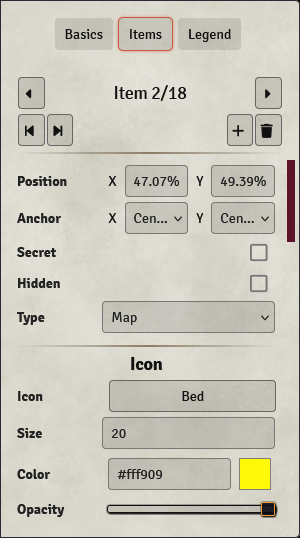

Items

Items are icons/images or labels that can be displayed in the widget.

You will need to have 1 item selected for the item options to show up.

Creating New Items

You can create new items by:

• Clicking the icon in the Item Navigation. If an item is selected, this item will be duplicated.
• Dragging an article onto the widget. The item's label will automatically be set to the widget's name, and the Tooltip and Click settings will be configured to display/open the article.

Item Selection

There are several ways to select an item:

• Clicking on the item (on the map or in the legend).
• Left click and dragging to select all items within the selection rectangle.
• Clicking the or buttons in the Item Navigation.

For the first 2 options, you can use the shift, ctrl and alt key to modify the current selection:

• Shift or Ctrl: Add the newly selected items to the previously selected items.
• Alt: Remove the newly selected items from the previously selected items.

Item Order

The item order determines in which order items are drawn, where items that are higher in the order will be drawn later, and will be drawn over any items that are lower in the order.

New items will always be added at the end of the item order (so they will be drawn on top of all existing items).
You can move items forwards or backwards in the order with the and buttons in the Item Navigation.

Item Type

There are 2 item types, map and overlay.

Map items are drawn on the background and will remain on the same location, relative to the background image. So if you pan or zoom, map items will move together with the background.

Overlay items are drawn on a static overlay layer, which means that they do not move relative to the background image. No matter how you zoom or move the background, the items will stay in the same place. Overlay items are always drawn on top of map items, regardless of their place in the item order.

The item type can be configured in the Basics section.

Item Navigation

The following navigation buttons are at the top of the items tab:

Button	Description
	Select the next item.
	Select the previous item.
	Move the selected item forwards in the item order.
	Move the selected item backwards in the item order.
	Create a new item (will duplicate the selected item).
	Delete the selected item.

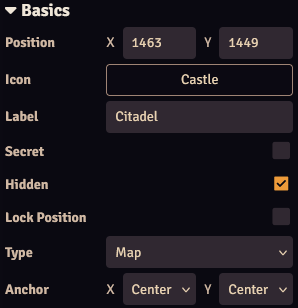

Basics

Option	Description
Position	Sets the position of the icon. This can be given in pixels (by entering a number), or as a percentage of the map's dimensions (if Type: Map) or the widget's dimensions (if Type: Overlay): X: 0% means the icon is located on the far left. X: 50% means the icon is located in the center. X: 100% means the icon is located on the far right.
Icon	Select the icon for the map item. Clicking on the button will open a drop-down menu where you can select the icon. Select File will allow you to choose an image file instead of one of the supplied icons. The icon can be further configured below.
Source	(Only if Icon is set to Select File) The source/path of the icon. Press to open the image browser.
Label	The label for the map item. Can be further configured below.
Secret	Makes the item a secret, which means that the item is only visible for users with Owner or Observer ownership. Secret items will be displayed semi-opaque when in Edit Mode.
Hidden	Hides the item for everyone. Hidden items will be displayed semi-opaque when in Edit Mode.
Lock Position	Locks the position of the map item to prevent accidental movement.
Type	Sets the type of the icon.
Anchor	Sets the anchor point of the item. The item's position is set at this anchor point. For example, an item is positioned at X: 0, Y:0: Anchor X: Center, Anchor Y: Center means the center of the icon is positioned on coordinate X: 0, Y: 0. Anchor X: Left, Anchor Y: Top means the top-left edge of the icon is position on coordinate X: 0, Y: 0.

Icon

Option	Description
Size	Sets the size of the icon.
Color	Sets the color of the icon.
Opacity	Sets the opacity of the icon.

Icon Outline

Option	Description
Display Mode	Sets when to display the outline and background: -Show on hover: Show the outline and background when hovering over the map item. -Always show: Always show the outline and background. -Never show: Never show the outline and background.
Line Color	Sets the outline color.
Line Thickness	Sets the outline thickness. Can be in pixels or as a percentage of the icon size.
Fill Color	Sets the color of the outline background.
Fill Opacity	Sets the opacity of the outline background.

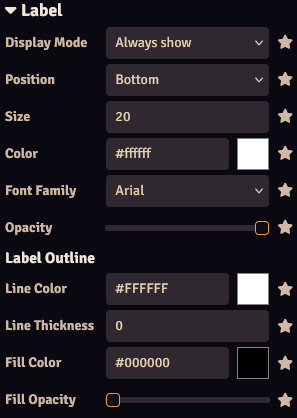

Label

Option	Description
Display Mode	Sets when to display the label: -Show on hover: Show the label when hovering over the map item. -Always show: Always show the label. -Never show: Never show the label.
Position	Sets the position of the label relative to the icon.
Size	Sets the font size of the label.
Color	Sets the color of the label.
Font Family	Sets the font family of the label.
Opacity	Sets the opacity of the label.

Label Outline

Option	Description
Line Color	Sets the outline color.
Line Thickness	Sets the outline thickness.
Fill Color	Sets the color of the outline background.
Fill Opacity	Sets the opacity of the outline background.

Legend

Configure how the map icon is displayed on the map legend.

Option	Description
Show in Legend	Display the map item in the legend.
Legend Label	The legend label for the map item, will use the 'normal' label if this field is left empty.
Color	Color of the legend label, will use the label color if this field is left empty.
Font Family	The font family for the legend label.

Interaction

This section configures what happens when you hover over or click an item (in play mode).

Tooltip

A tooltip (popup) can be displayed when hovering over the map item.

Option	Description
Mode	The mode of the tooltip: -Disabled: Do not display a tooltip. -Text: Display a configurable text. -Article: Display the contents of a page of an article.
Text	(Mode: Text only) The text to display in the tooltip. Can be formatted as HTML.
Article	(Mode: Article only) Article to display in the tooltip.
Page	(Mode: Article only) Page of the selected article to display in the tooltip, will default to the first page if unconfigured.

Click

An action can be performed when clicking on a map item.

Option	Description
Mode	The mode of the click action: -Disabled: Do nothing. -Open Article: Open an article. -View Scene: View a scene. -Activate Scene: Activate a scene. -Execute Macro: Execute a macro.
Article	(Mode: Article only) Article to display in the tooltip.
Page	(Mode: Article only) Page of the selected article to display in the tooltip, will default to the first page if unconfigured.
Scene	(Mode: View Scene or Mode: Activate Scene only) Scene to view/activate.
Macro	(Mode: Macro only) Macro to execute.

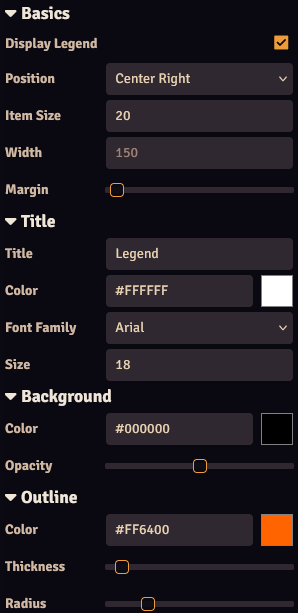

Legend

A legend can be displayed over the map. This legend can display one or more map items. Hovering and/or clicking on the legend items will have the same effect as hovering/clicking the map items.

Basics

Option	Description
Display Legend	Display or hide the legend.
Position	Position of the legend.
Item Size	Sets the size of the legend items.
Width	Width of the legend. If left empty the width will be automatically determined by the contents.

Title

Option	Description
Title	Sets the title of the legend.
Title Color	Sets the color of the title.
Font Family	Sets the font family of the title.
Size	Sets the font size of the title.

Background

Option	Description
Color	Sets the background color of the legend.
Opacity	Sets the background opacity of the legend.

Outline

Option	Description
Color	Sets the color of the legend outline.
Thickness	Sets the line thickness of the legend outline.
Radius	Sets the corner radius of the legend outline.
